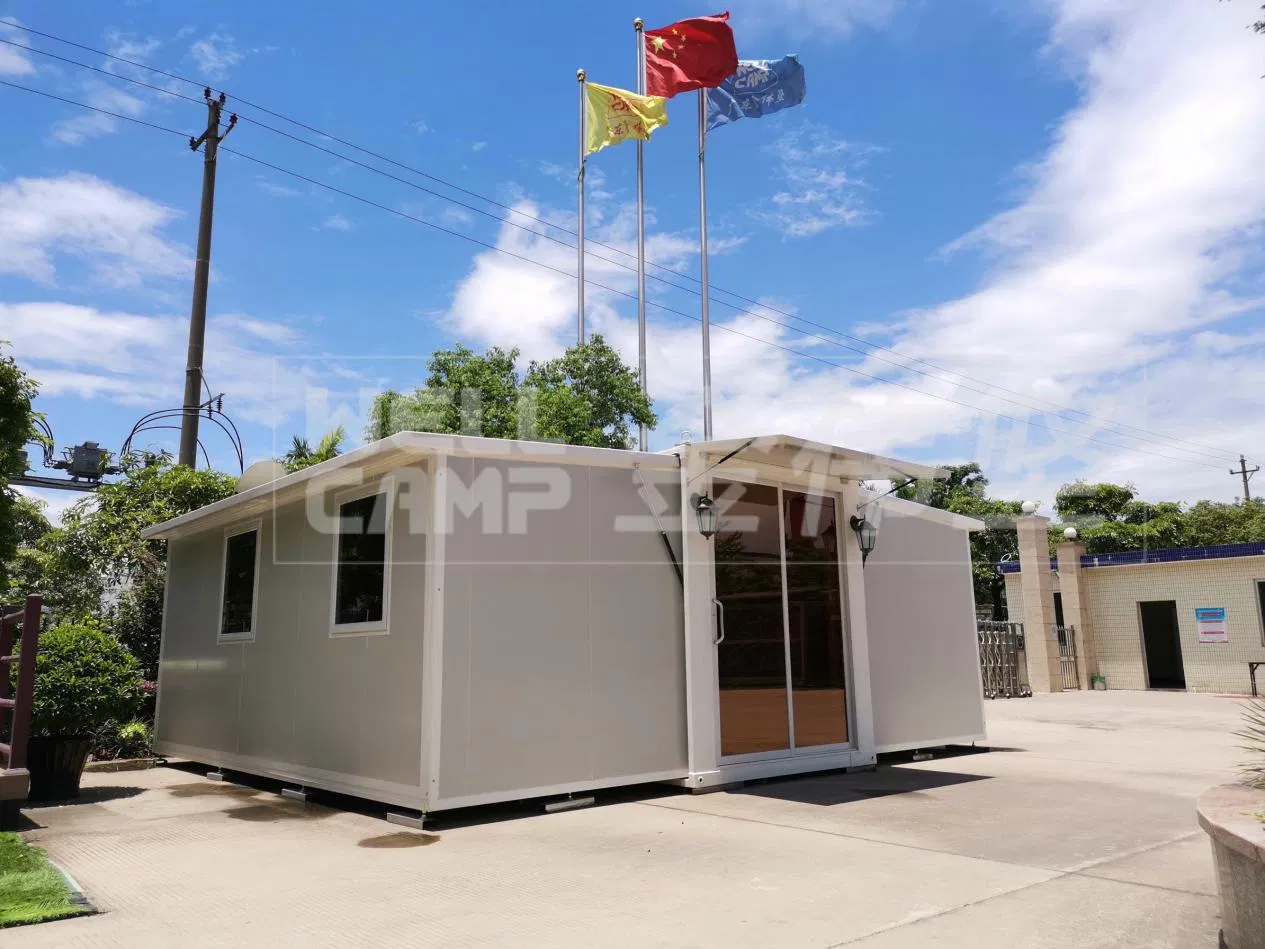

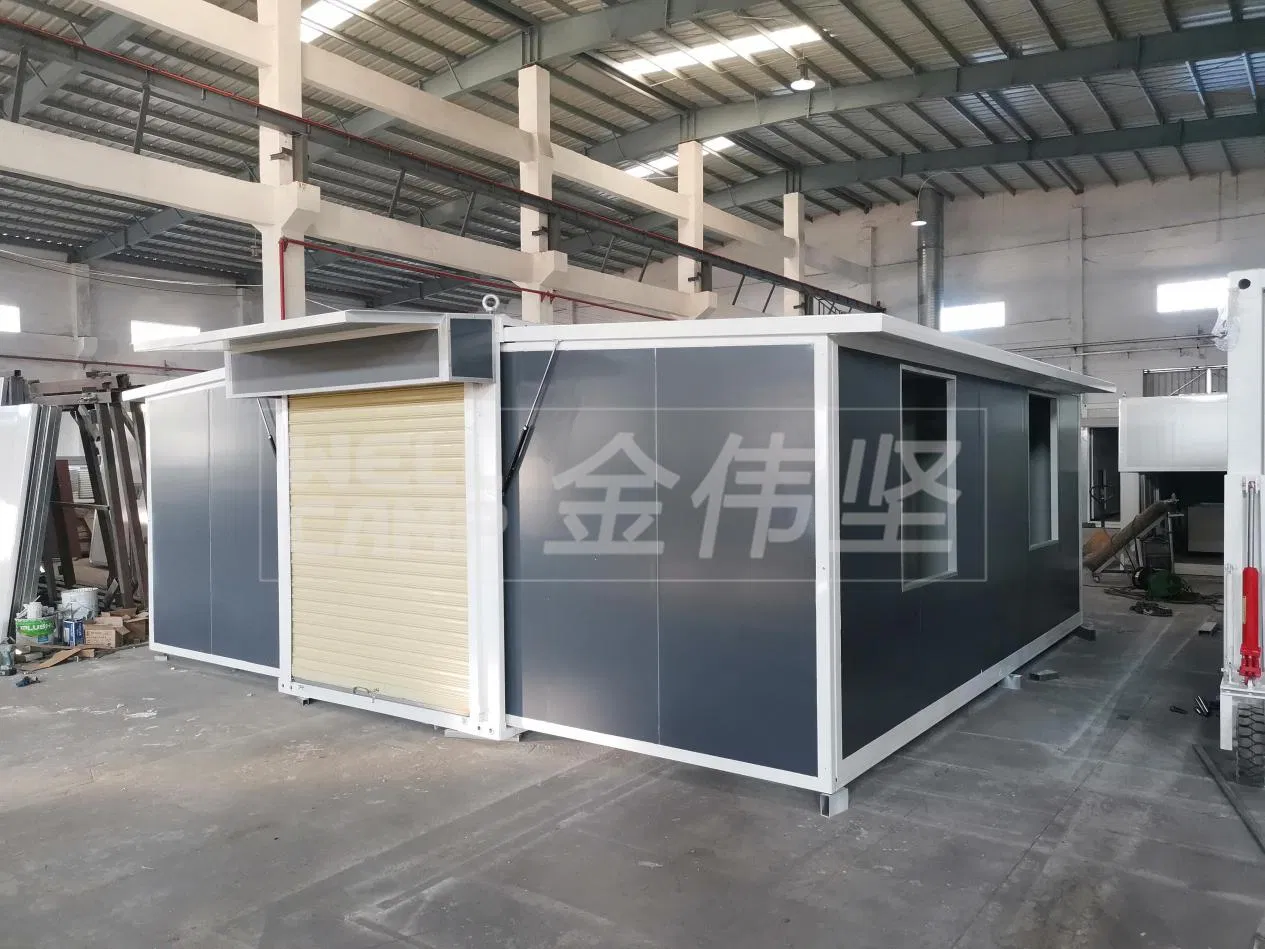

Expandable Container Modular Manager Office Building with Bathroom

Customization:	Available
Material:	Steel Structure+Sandwich Panel
Length:	5.8m

i

Overview - Basic Info

Width

6.3m

Height

2.5m

Roof Thickness

50mm

Wall Thickness

50mm

Usage

Dormitories, Villa, Temporary Offices

Certification

CE, ISO, SGS

Production Capacity

60 Sets Per Month

HS Code

9406900090

★

Product Description

Expandable Container Modular Manager Office Building with Bathroom

Special Features:

Adjustable loading roller
Adjustable stand
High-strength hydraulic support rod
Optional porchlight
Foldable canopy
High-end hidden latch

Standards and Certificates:

Compliant with USA, Germany, and Australia standards
ISO9001:2015, SGS, UL, BV, CE Certified

Technical Specifications

Available Sizes:

5.8L * 4.8W * 2.5H (Empty) - 6 sets/HQ
5.8L * 5.2W * 2.5H (Empty) - 4 sets/HQ
5.8L * 6.3W * 2.5H (2 bedrooms & 1 toilet) - 2 sets/HQ

Material Structure:

Steel structure: Galvanized steel
Roof: 100mm glass wool + Steel sheets / 50mm EPS sandwich panel (extension part)
Wall: 50mm EPS sandwich panel
Floor: Steel structure + Bamboo composite board + PVC tile flooring

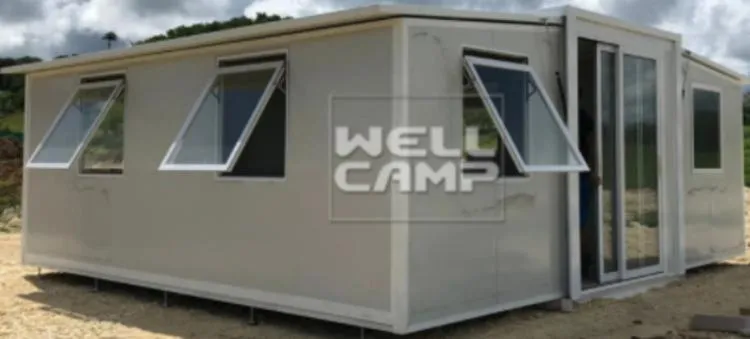

Window: Aluminum up-swing or double-glass sliding
Included: Pre-fixed electric system and sanitary ware

Optional Enhancement & Mobility

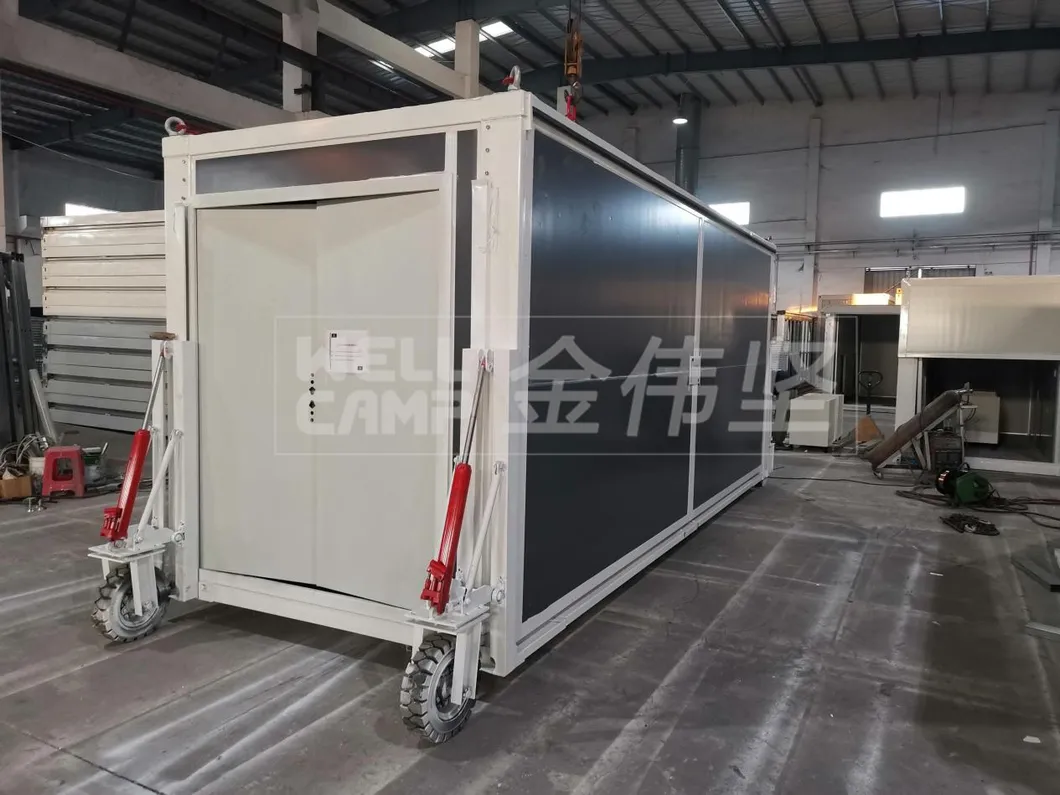

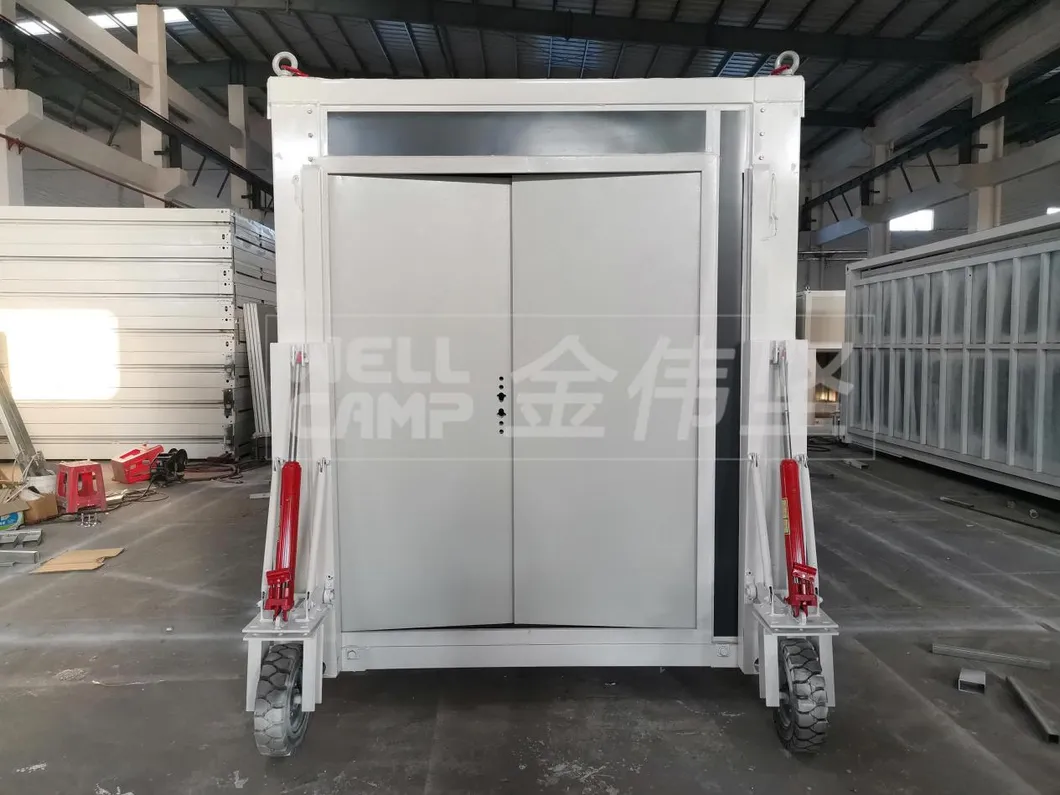

Inspired by modern caravans, our upgrade focuses on mobility and security. Features include 4 detachable solid tires with hydraulic lever welding on the steel structure. It can be easily connected with a truck for transportation. Includes a shutter door for enhanced protection at the first entrance, maintaining double-open or glass sliding doors inside.

⚙

Product Parameters

Wind Resistance	Grade 10
Earthquake Resistance	Grade 8
Roof Snow Load	0.6kn/m2
Wall Permitted Loading	0.6kn/m2
Heat Transmission Coefficient	0.35kcal/m2hc
Wall and Roof Panel	EPS / Glass wool / PU
Container Weight	2.5T (EPS)
Designed Life	15-20 years
Delivery Time	Normally 20-30 days
MOQ	2 Sets

⚒

Manufacturing & Quality

?

Frequently Asked Questions

How long does it take to assemble an expandable container home?

The basic expansion of the structure takes approximately 1-2 hours with a small crew. Internal finishing depends on the complexity of the customization.

Are these units suitable for extreme weather conditions?

Yes, they are designed to withstand Grade 10 winds and Grade 8 earthquakes. The sandwich panels provide excellent thermal insulation for both hot and cold climates.

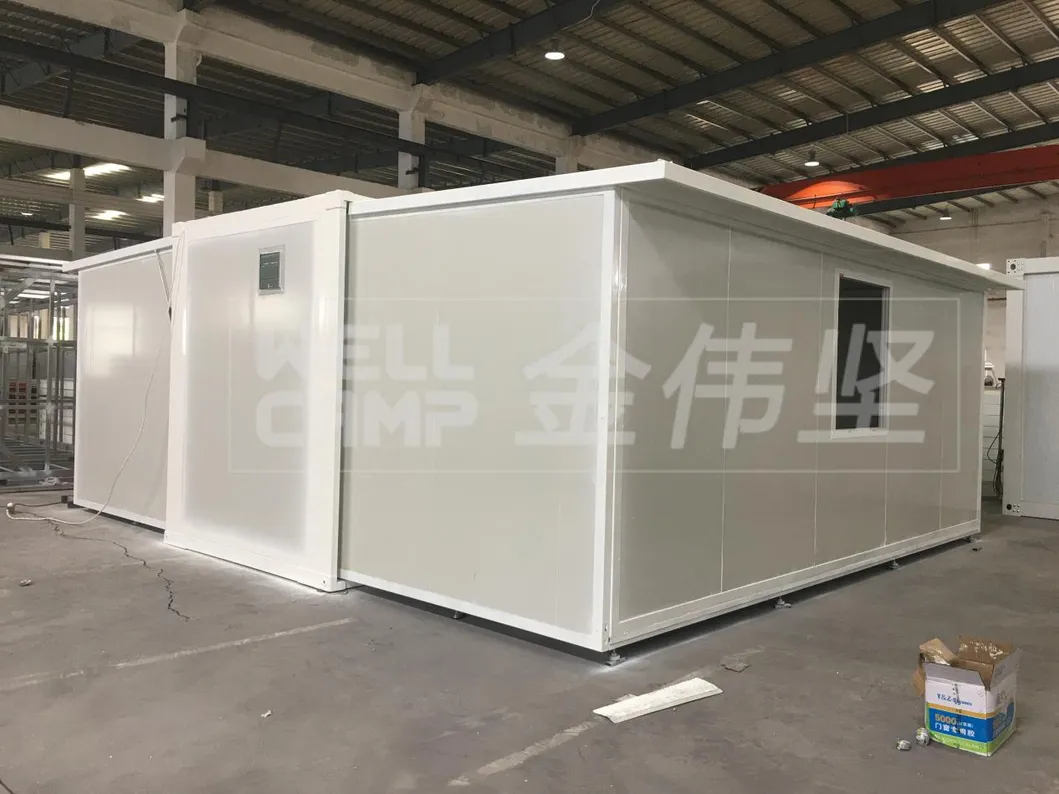

Can the internal layout be customized?

Absolutely. We offer various layouts including empty units, or units with 1-3 bedrooms and integrated bathrooms/kitchens.

What is the estimated lifespan of the building?

With proper maintenance, our container modular buildings have a designed service life of 15 to 20 years.

How are the units shipped?

Units are folded for transport. Depending on the size, between 2 to 6 units can fit into a single 40ft HQ shipping container.

Do the units come with electrical and plumbing systems?

Yes, the electrical systems and sanitary ware are pre-fixed and tested before shipping to ensure easy plug-and-play installation on site.
