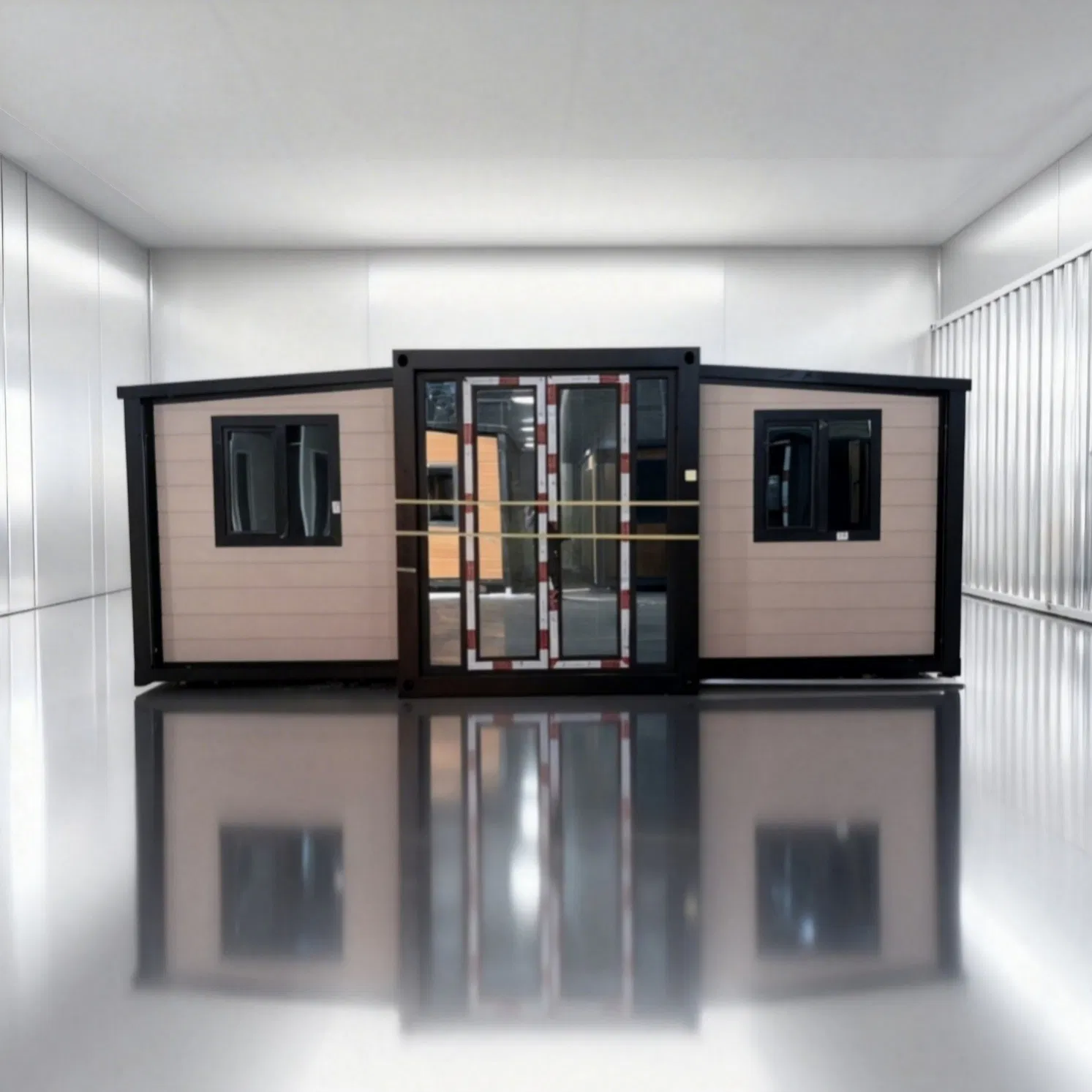

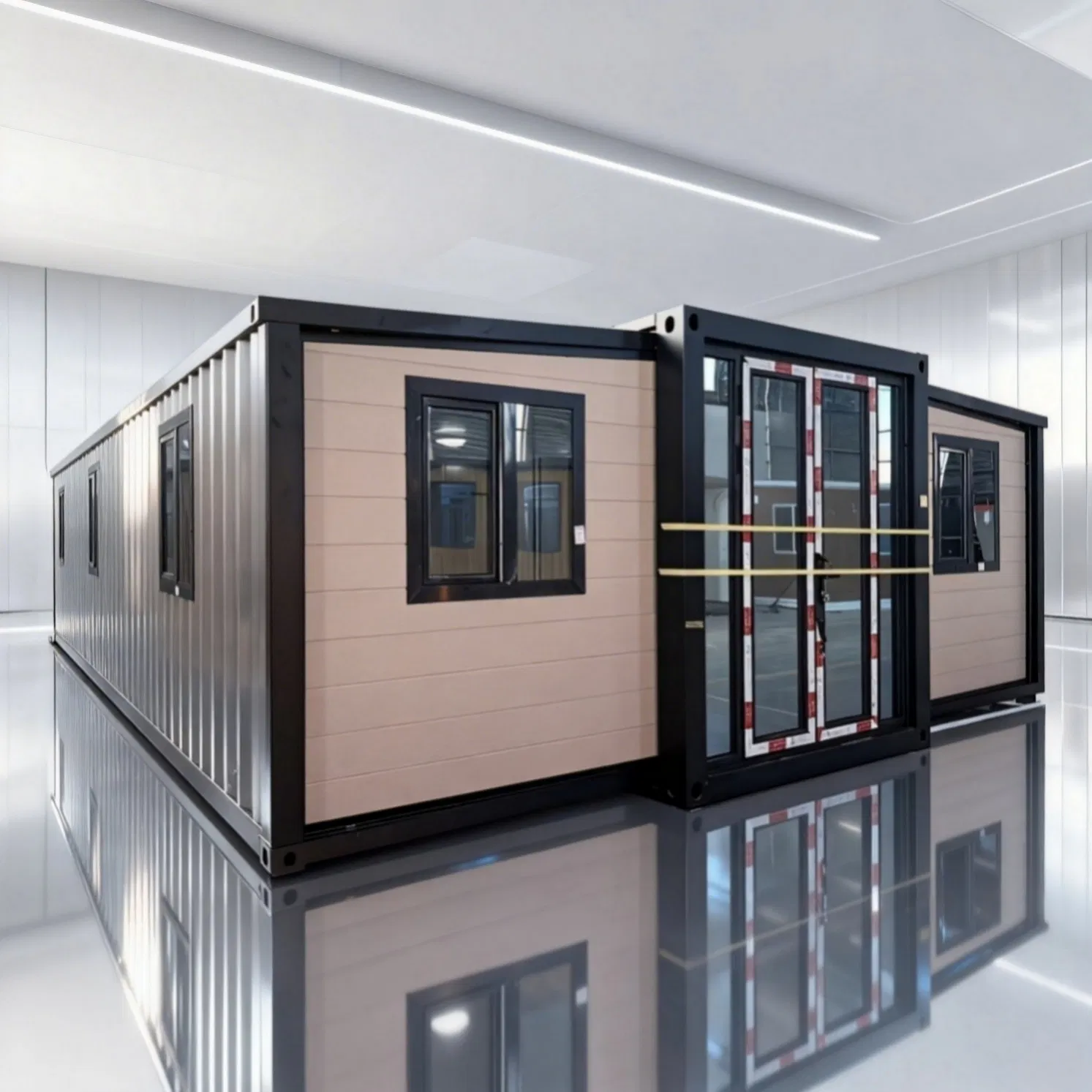

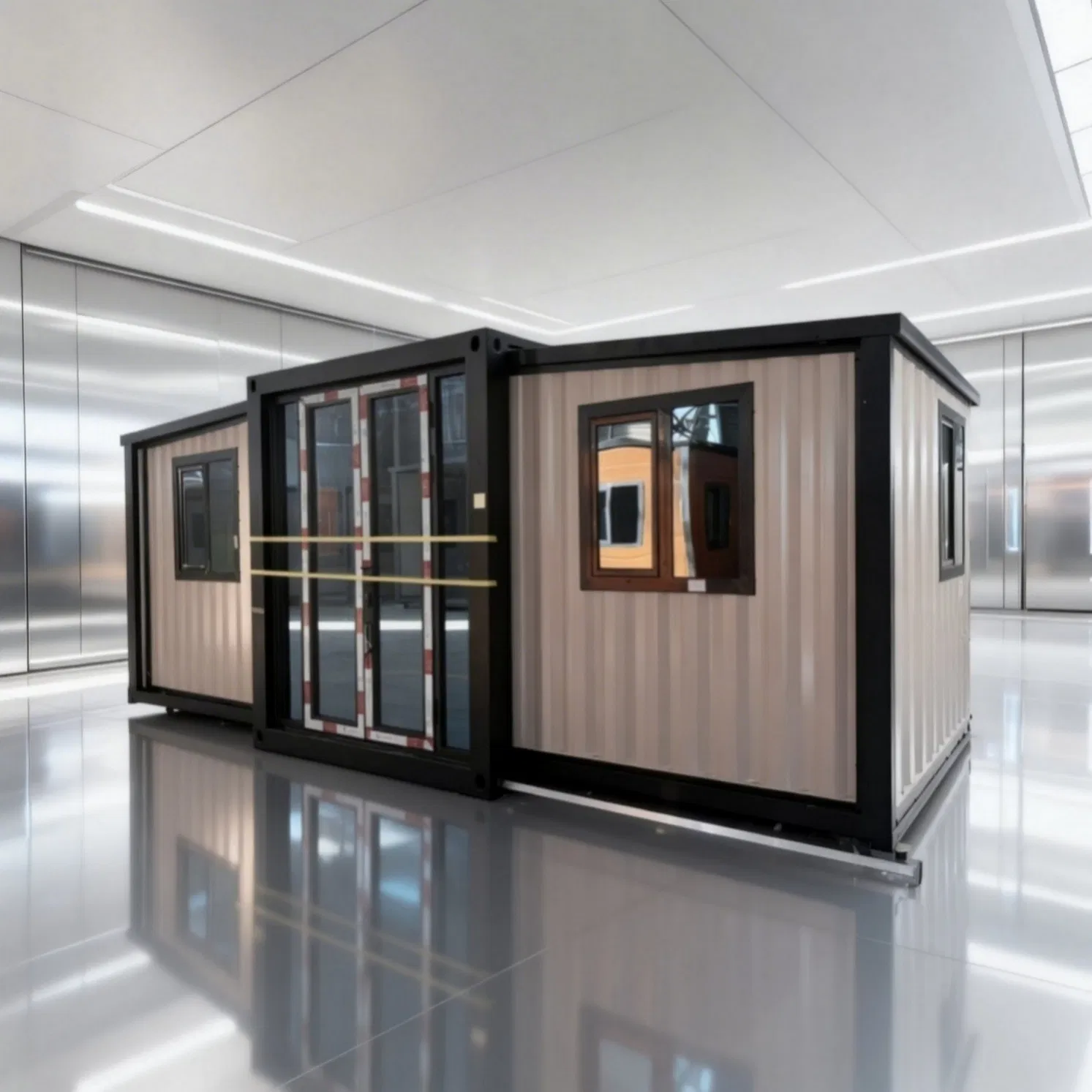

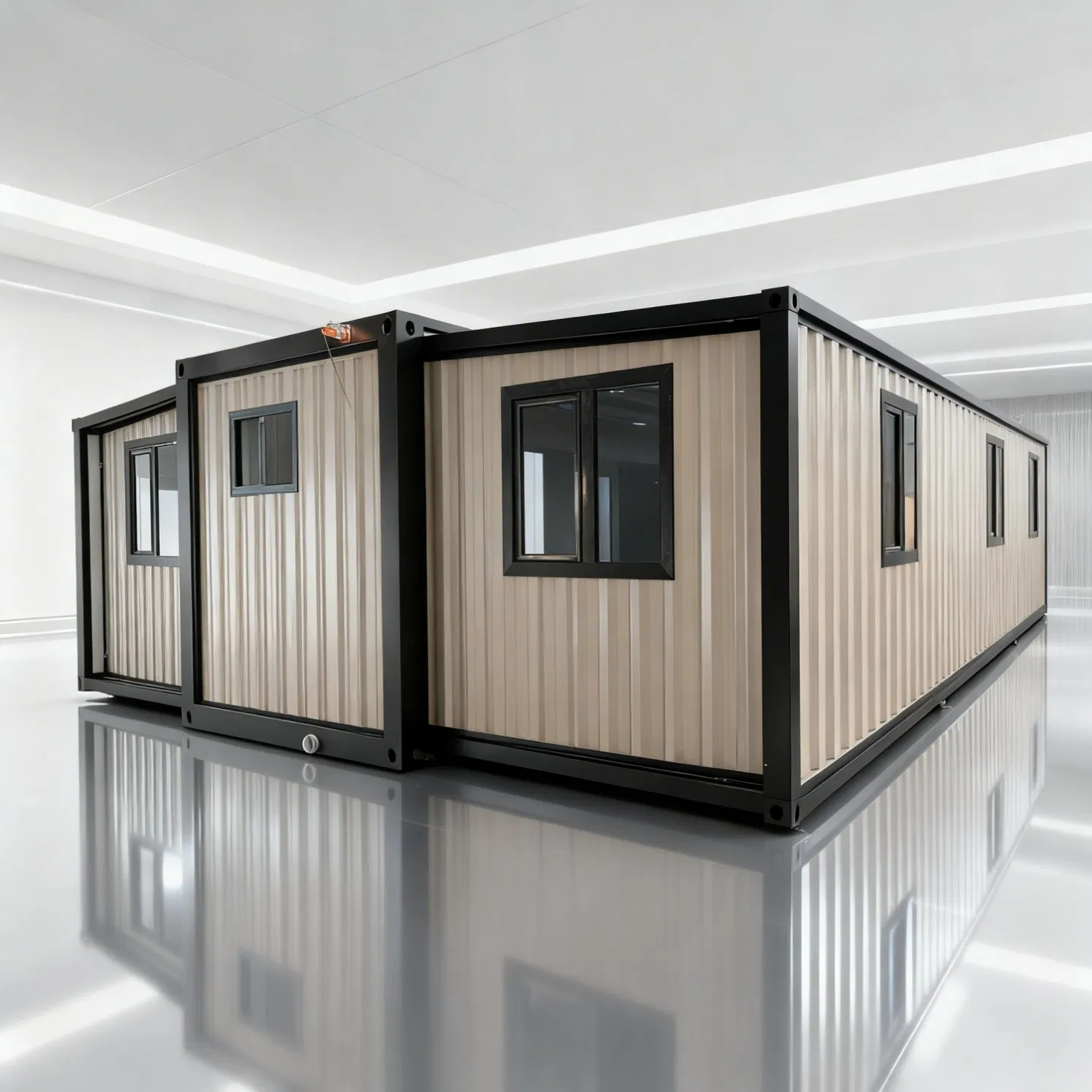

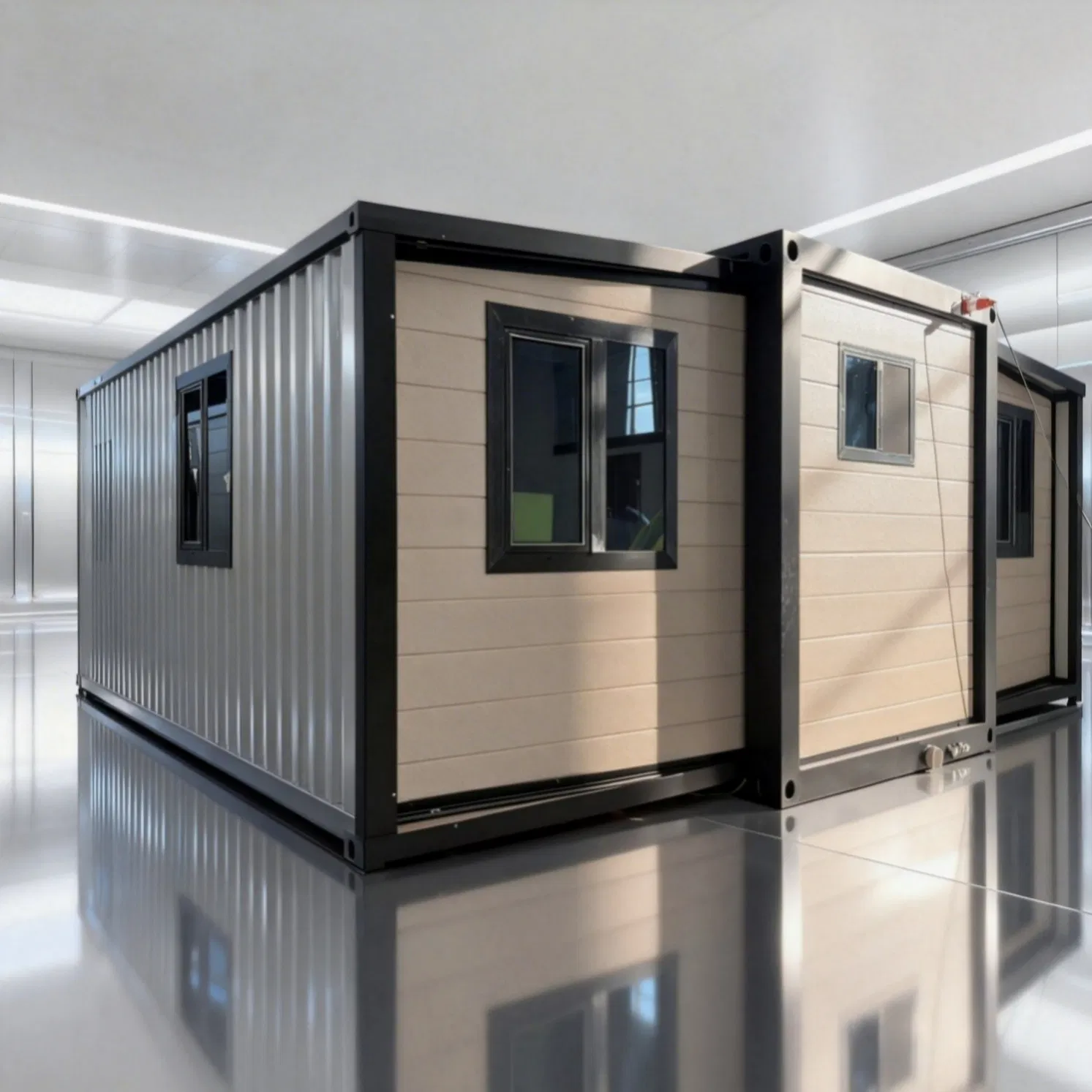

40FT Twin Wing Modular Housing Unit with No Nail Wall System and 40X60mm Reinforced Square Tube Bottom Structure

After-sales Service: Field Installation, Commissioning and Training
Application: Apartment
Fast Installation: Standard Installation

Product Description

Basic Specifications
Feature
Earthquake Resistant, Easily Movable, Eco-Friendliness, Leak Proof, Moisture Proof, Safe
Material
Container
Expanded Dimensions
L11800 × W6200 × H2480mm
Interior Dimensions
L11200 × W6060 × H2200mm
Folded Dimensions
L11800 × W2200 × H2480mm
Occupancy
4-6 People
Power Consumption
12 Kw
Production Capacity
1000 Sets/Year

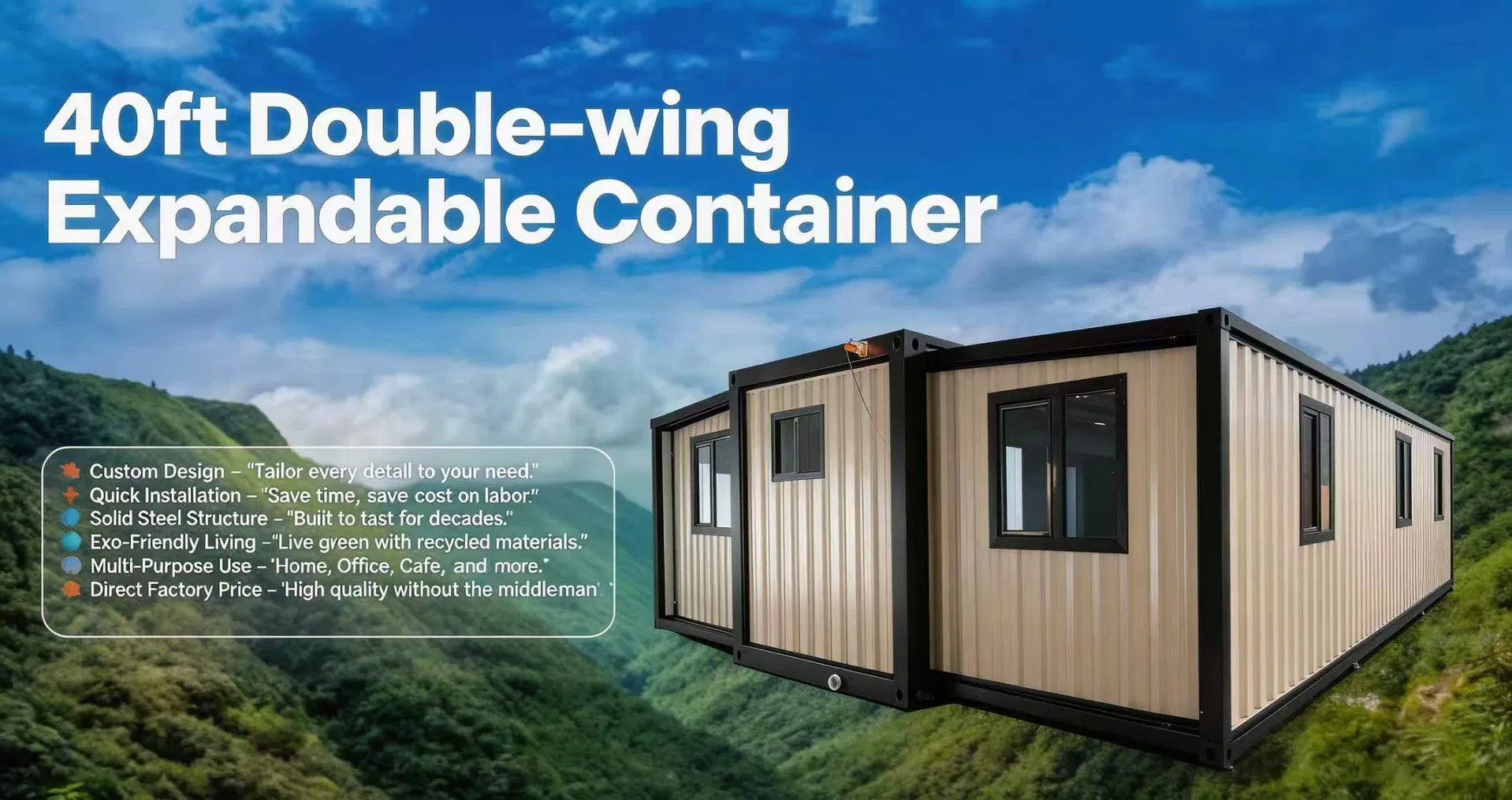

40FT Twin Wing Modular Housing Unit

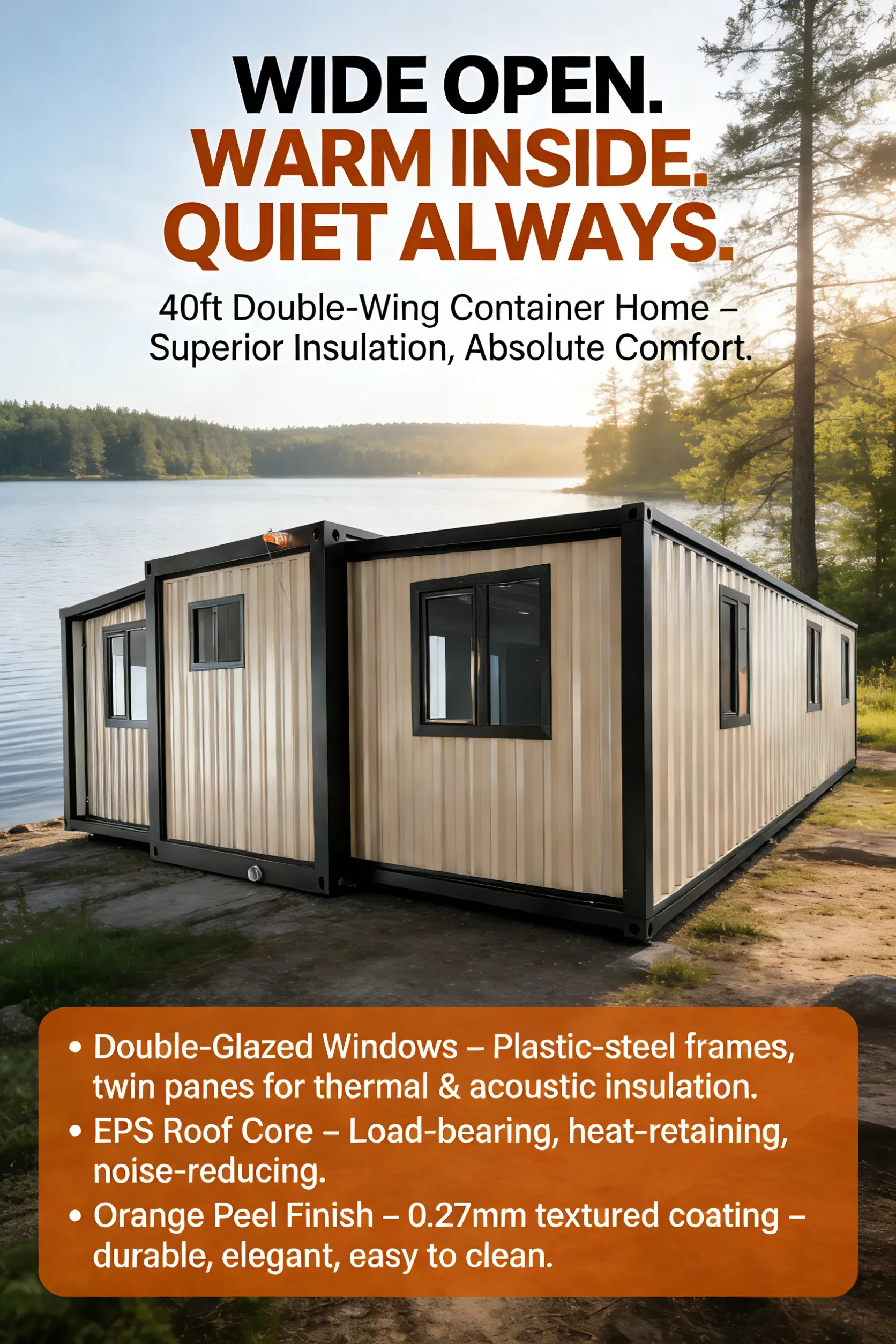

Modular Housing Structure
Core Advantages
Roof Panel Detail
◈
Superior Load-Bearing Roof: High-density EPS top panel delivers excellent structural strength and durability.
◈
Reinforced Lifting Points: 8 mm thick lifting anchors, exceeding standard specifications for safer handling.
◈
Premium Exterior Finish: 0.27 mm orange-peel textured wall panels offer enhanced weather resistance.
◈
Seamless Waterproofing: No exposed nails on the outer surface ensures better corrosion protection.
◈
Upgraded Base Frame: 40×60 mm bottom steel tubing provides greater rigidity and resistance to deformation.
Technical Parameters
Parameter Details
Product Name40ft Double-wing Expandable Container
Expanded DimensionsL11800 × W6200 × H2480mm
Interior DimensionsL11200 × W6060 × H2200mm
Folded DimensionsL11800 × W2200 × H2480mm
Floor Area74.8 m²
Net WeightApprox. 5.5 tons
Product Gallery

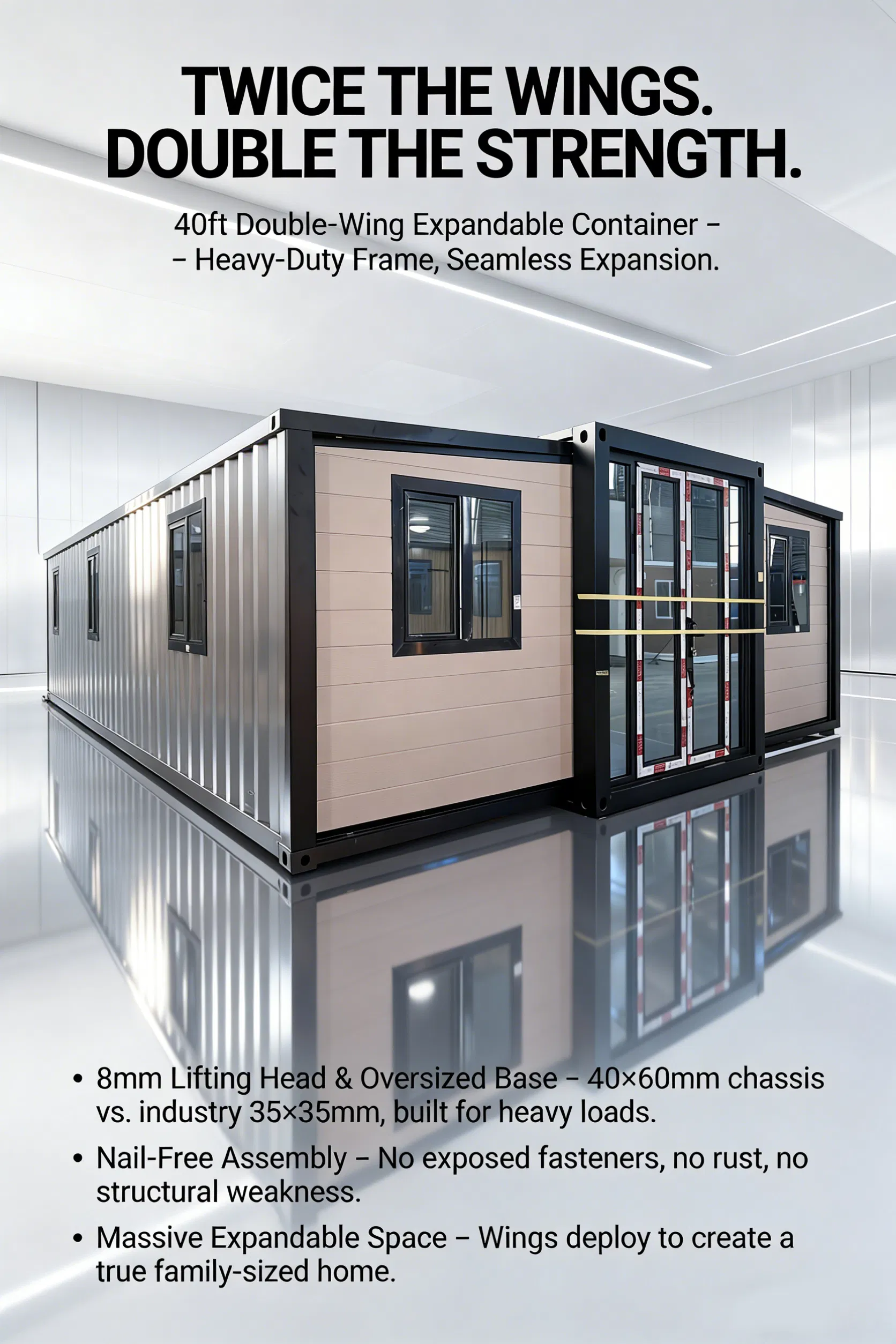

Gallery 1

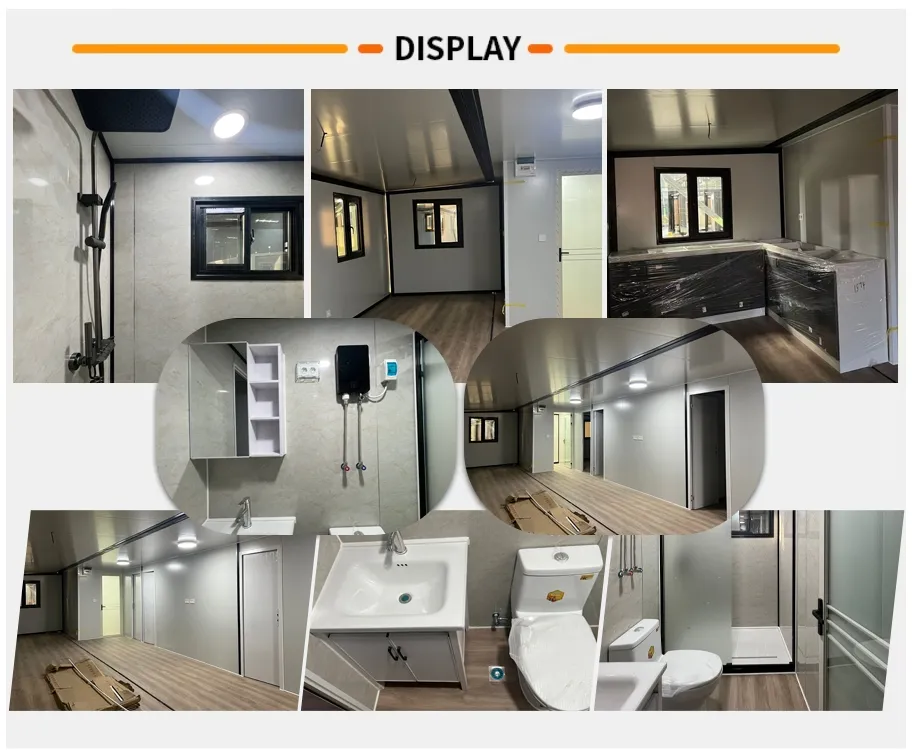

Gallery 2
Gallery 3

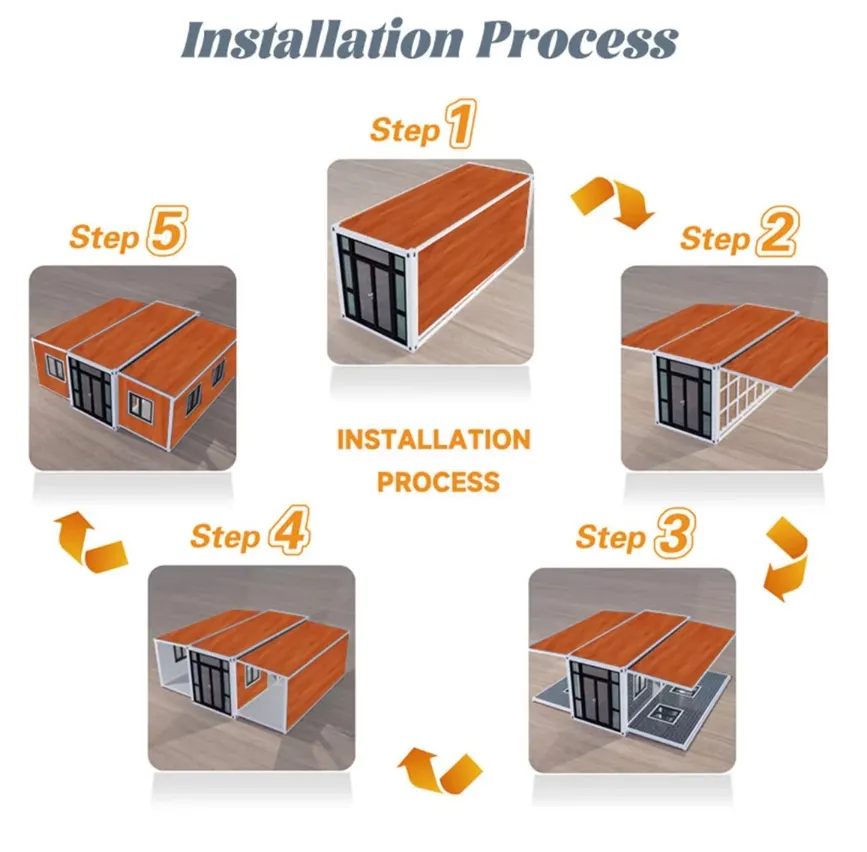

Gallery 4
Gallery 5
Gallery 6
Structural Framework
Main Frame (Galvanized) Top/Bottom Main Beam 80×140×3.5mm square tube
Cross Beam Bending part, 3.0mm
Vertical Post 3.0mm with 6mm lifting head liner
Side Wing Frame Top Frame 40×80mm tubes (Various thickness)
Folding Hinge 13mm galvanized hinge
View 1
View 2

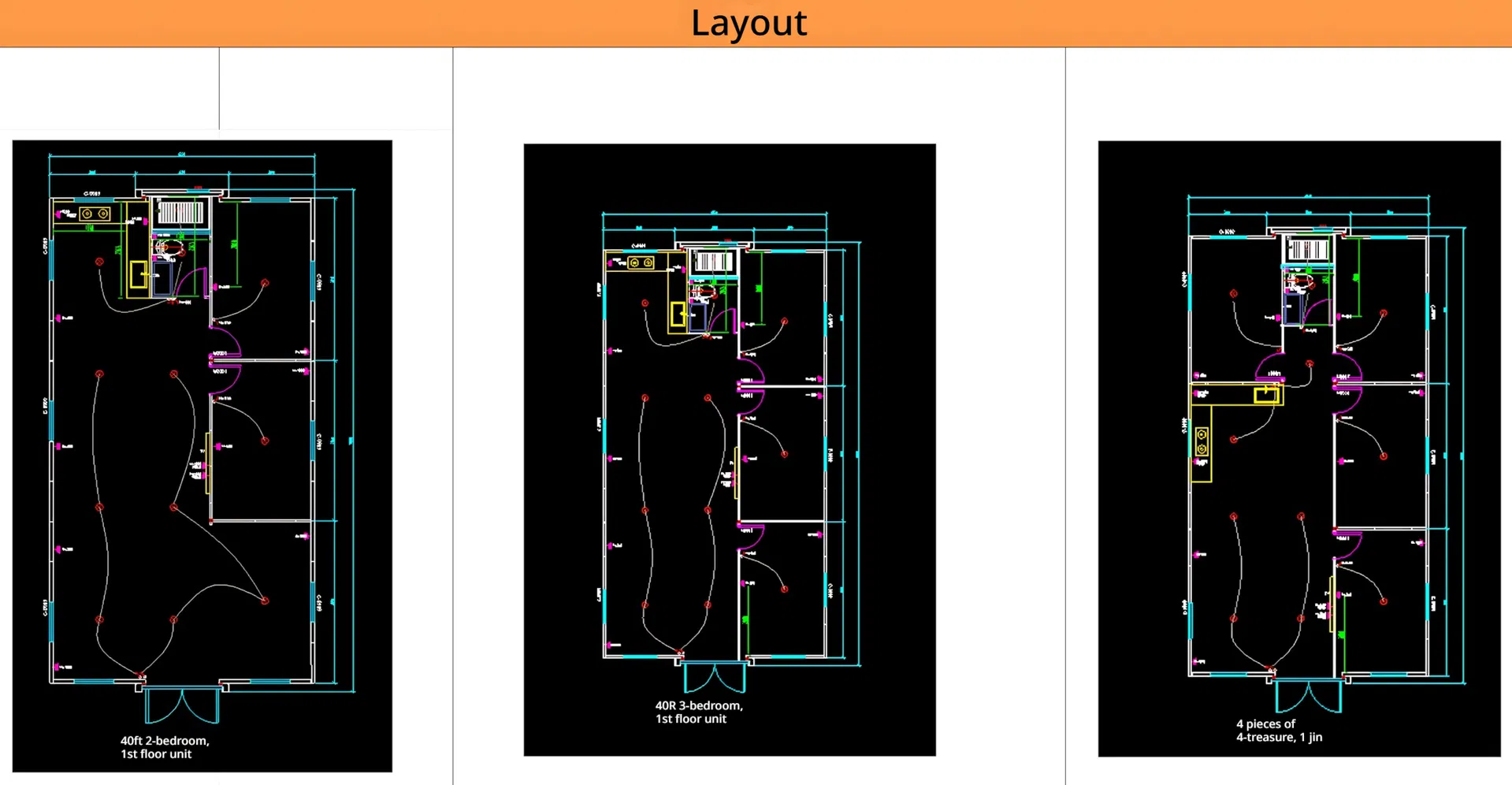

Layout 1
Layout 2
Frequently Asked Questions
● Are you a manufacturer?
We are not only a manufacturer but also a production expert in modular housing solutions.
● Is the machine/unit of good quality?
Our units undergo strict quality control; there is no problem with the structural integrity or material quality. You can use them with full confidence.
● Do you provide installation assistance?
Yes, we provide support and can arrange for experienced engineers to assist with installation requirements.
● What is the warranty period?
The standard warranty is one year. We also remain available to help solve any issues that may arise outside the warranty period.
● How is the thermal insulation of the unit?
The units are equipped with high-density EPS panels and double-glazed plastic-steel windows for superior thermal insulation and noise reduction.
● Is the structure safe against natural disasters?
Yes, the 40FT Twin Wing units are designed to be earthquake-resistant and moisture-proof, utilizing a reinforced square tube bottom structure for maximum safety.
